How To Detect Hidden Foundation Issues Behind Finished Walls

Diagnostic Indicators of Foundation Stress Behind Finished Drywall

Detecting concealed foundation movement behind finished walls requires identifying secondary architectural strain signals before major structural displacement occurs. Unexplained drywall cracking near door corners, recurring baseboard separations, sticky window sashes, and floor slopes exceeding 0.5 inches over 10 feet indicate underlying pier settlement or stem wall rotation. Early field evaluation prevents catastrophic framing collapse.

Finished drywall and decorative wood paneling mask severe foundation movement by flexing across subframe connections until shear capacity is exceeded. When expansive clay soils swell or shrink below a slab or stem wall, structural framing shifts unevenly across load-bearing lines. Homeowners often mistake these early structural warnings for simple thermal expansion or cosmetic plaster cracking.

We regularly observe distinct hairline fracture patterns at top wall corners that form 45-degree diagonal angles toward door headers. When door frames out of plumb exceed 0.25 inches over 80 inches of vertical run, framing deformation points directly to localized foundation subsidence. Baseboard gaps that widen progressively over a six-month period signal downward floor joist displacement relative to perimeter stem walls.

Key cosmetic indicators that demand immediate professional structural investigation include:

• Diagonal sheetrock cracks extending outward from upper window casing corners.
• Gaps exceeding 0.125 inches between baseboards and finished hardwood or tile flooring.
• Interior doors that self-swing or fail to latch due to jamb distortion.
• Horizontal separation lines appearing along drywall tape joints where ceiling joists connect to exterior walls.

Non-Destructive Inspection Protocols for Encapsulated Structural Framing

Non-destructive foundation inspection behind finished interior surfaces relies on digital elevation profiling, radio-frequency moisture mapping, and high-definition video borescope imaging. These specialized diagnostic tools allow structural engineers to precisely map subframe deflection, detect hidden moisture intrusion, and inspect obscured concrete stem walls without destroying finished drywall surfaces or decorative architectural elements.

To inspect obscured structural members, we deploy high-frequency pinless moisture meters that read dielectric constants through finished drywall up to two inches deep. Moisture readings exceeding 16 percent Wood Moisture Equivalent in subflooring or wall studs indicate subsurface water ingress, which destabilizes crawl space soils and rots wooden mudsills. Elevated moisture readings prompt us to deploy targeted micro-camera systems.

By drilling subtle 0.375-inch pilot openings behind baseboards, we insert articulating video borescopes equipped with high-intensity LED illumination. This technique reveals obscured concrete stem wall spalling, active foundation cracks, and rotted sill plates without requiring invasive sheetrock demolition. Simultaneously, we execute digital elevation mapping using high-precision electronic water levels to map floor elevation variances across the entire footprint.

We select diagnostic tools based on specific structural observations and physical access limitations:

1. Conduct a room-by-room digital elevation sweep to establish an absolute benchmark floor plane.
2. Scan suspect wall cavities with dual-frequency thermal imaging cameras to locate thermal anomalies caused by soil-gas convection or moisture migration.
3. Perform targeted borescope insertions into sub-floor framing cavities showing elevated moisture levels or vertical displacement.

Geological Stress Factors Specific to San Francisco Bay Area Properties

San Francisco Bay Area homes face severe structural stress caused by expansive clay soils, high seismic risk, and widespread soil liquefaction zones. Seasonal transitions between wet winters and dry summers induce dramatic clay expansion and contraction cycles, which exert immense hydrostatic pressure or cause deep perimeter settlement under existing concrete footings and post-and-pier supports.

The primary geologic hazard impacting local residential foundations is the widespread presence of smectite-rich expansive clay, often referred to as highly expansive adobe clay. According to published soil data on Geology.com Expansive Soil Data, expansive clays absorb massive volumes of water during rainstorms, exerting lateral uplift pressures exceeding 5,500 pounds per square foot against concrete stem walls. During summer months, these soils dry out and shrink, removing critical vertical support beneath peripheral footings.

In addition to seasonal soil expansion, properties built on alluvial fans or historic bay fill face significant seismic shaking hazards. Maps compiled by the U.S. Geological Survey Liquefaction Hazard Maps highlight high-risk liquefaction zones across Alameda, Santa Clara, and San Francisco counties where seismic shaking temporarily transforms water-saturated sand and silt into liquid-like slurries. Foundation footings sitting on liquefiable soils experience severe differential settlement during moderate seismic events.

Regional structural vulnerabilities vary by geographic location and historical construction standards:

• Marine clay deposits in Oakland and Berkeley cause seasonal foundation perimeter tilting.
• Unreinforced concrete stem walls in historic San Jose homes lack vertical rebar, leading to shear cracking during clay expansion.
• Low-lying artificial fill zones near the bay edge experience differential settlement due to fluctuating water tables.

Foundation Repair Methods: Technical Decision Framework

Selecting the proper foundation repair protocol depends on subsurface soil bearing capacity, total structural weight, degree of differential settlement, and localized site access constraints. Underpinning with push or helical piers permanently stabilizes sinking footings, whereas deep soil polymer injection consolidates loose subgrade, and drainage remediation combined with seismic retrofitting halts ongoing structural movement.

If a foundation suffers from deep structural settlement exceeding one inch due to unstable deep soil strata, we prioritize installing hydraulically driven steel push piers or helical piers anchored into load-bearing bedrock. If settlement is limited to surface soil compaction or shallow moisture loss, deep polyurethane polymer injection consolidates loose subgrade soil while lifting localized slab sections. Conversely, if moisture accumulation is the root cause, installing exterior drainage curtains and vapor barriers stabilizes soil volume without major structural lifting.

If your property exhibits localized framing movement, follow this conditional decision framework:

1. If differential elevation exceeds 1.5 inches over 20 feet, execute a geotechnical core boring to verify soil load-bearing capacity.
2. If soil bearing capacity at five feet depth is below 1,500 pounds per square foot, install steel push piers anchored to stable refusal depths.
3. If soil capacity is adequate but moisture fluctuations cause seasonal movement, construct a perimeter French drain system combined with deep sub-slab moisture barriers.

Field Case Studies: Diagnosing and Resolving Hidden Substructure Failures

Field engineering challenges require specialized diagnostic protocols and custom structural interventions to resolve hidden foundation damage behind finished interiors. In historical and modern Bay Area residences, diagnosing substructure distress beneath plaster or sheetrock finishes demands precise non-destructive testing followed by targeted engineering solutions that permanently restore structural integrity without total building demolition.

During a recent project in an 1890s Victorian residence in Alameda, the owner reported sticking second-story doors and diagonal plaster cracks across renovated interior walls. Because decorative lath and plaster completely covered the lower subframe, we deployed digital laser leveling and inserted an articulating video borescope through existing floor register openings. We discovered that three interior wood posts on concrete pads had settled over 2.25 inches due to subterranean decay and mudsill rot.

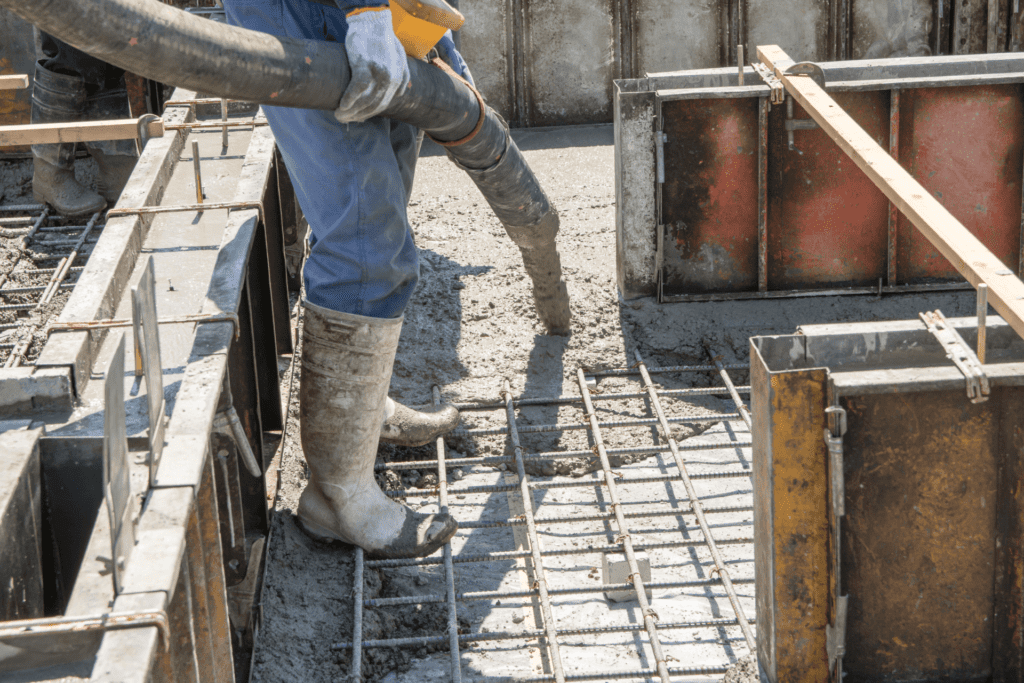

To resolve this issue without removing historical interior wall finishes, we installed continuous temporary hydraulic shoring beams beneath the main floor joists. We excavated three-foot-square footings down to stable soil, poured steel-reinforced concrete footings, and installed adjustable steel column posts equipped with mechanical locking collars. We then precisely jacked the structure back to level in 0.25-inch increments over four days, eliminating interior door binding and closing top-wall plaster cracks.

In a second project involving a hillside home in Oakland, finished drywall concealed severe stem wall rotation caused by intense hydro-static pressure in expansive clay soil. Pinless moisture mapping revealed 22 percent moisture content along the lower drywall boundary, and micro-borescope insertion exposed vertical shearing across an unreinforced stem wall. We installed a subterranean exterior drainage membrane, anchored seven heavy-duty helical tiebacks through the stem wall into stable hillside rock, and stabilized the foundation perimeter without removing internal drywall finishes.

Frequently Asked Questions

Evaluating hidden foundation issues generates critical questions regarding inspection techniques, repair necessity, structural urgency, financial investment, and insurance coverage. The following responses provide direct, actionable answers grounded in structural engineering practices and regional building requirements across the San Francisco Bay Area to help homeowners make informed property preservation decisions.

How do professionals detect hidden foundation cracks behind drywall without tearing down walls?

Professionals detect hidden foundation cracks behind drywall by combining electronic water levels, thermal imaging, pinless moisture meters, and articulating video borescopes inserted through tiny test holes. This non-destructive diagnostic approach maps subframe slope and cavity moisture to pinpoint structural defects precisely without major wall demolition.

What is the most reliable sign that a wall crack indicates structural foundation failure?

The most reliable sign of structural foundation failure is a diagonal crack wider than 0.125 inches extending upward from a door or window frame corner, accompanied by door frame binding. Cracks that taper, reappear shortly after cosmetic taping, or coincide with floor slopes exceeding 0.5 inches over 10 feet confirm underlying foundation displacement.

Can expansive clay soil destroy a foundation without visible water flooding?

Yes, expansive clay soil damages foundations through unseen volumetric changes in subterranean moisture without requiring visible surface water flooding. As subterranean clay absorbs moisture during wet winter months, it exerts upward heave pressures exceeding 5,500 pounds per square foot, followed by severe shrinkage and settlement during summer droughts.

How much does structural underpinning or deep foundation repair cost in the Bay Area?

Foundation repair costs in the San Francisco Bay Area typically range from 5,000 US dollars for localized crack injection and drainage mitigation to 35,000 US dollars or more for extensive steel pier underpinning. Final project costs depend on structural weight, required pier depth to reach bedrock refusal, and site access constraints for specialized hydraulic equipment.

Does homeowners insurance cover hidden foundation repairs caused by soil movement?

Standard homeowners insurance policies exclude coverage for foundation repairs resulting from soil settlement, clay expansion, earthquakes, or gradual groundwater seepage. Insurance coverage applies almost exclusively to foundation damage caused by sudden internal plumbing ruptures or specific covered disasters, making routine inspection and preventative maintenance vital.
