Understanding Concrete Block Foundations: Essential Insights For Homeowners

Fundamentals of Concrete Block Foundations in Bay Area Homes

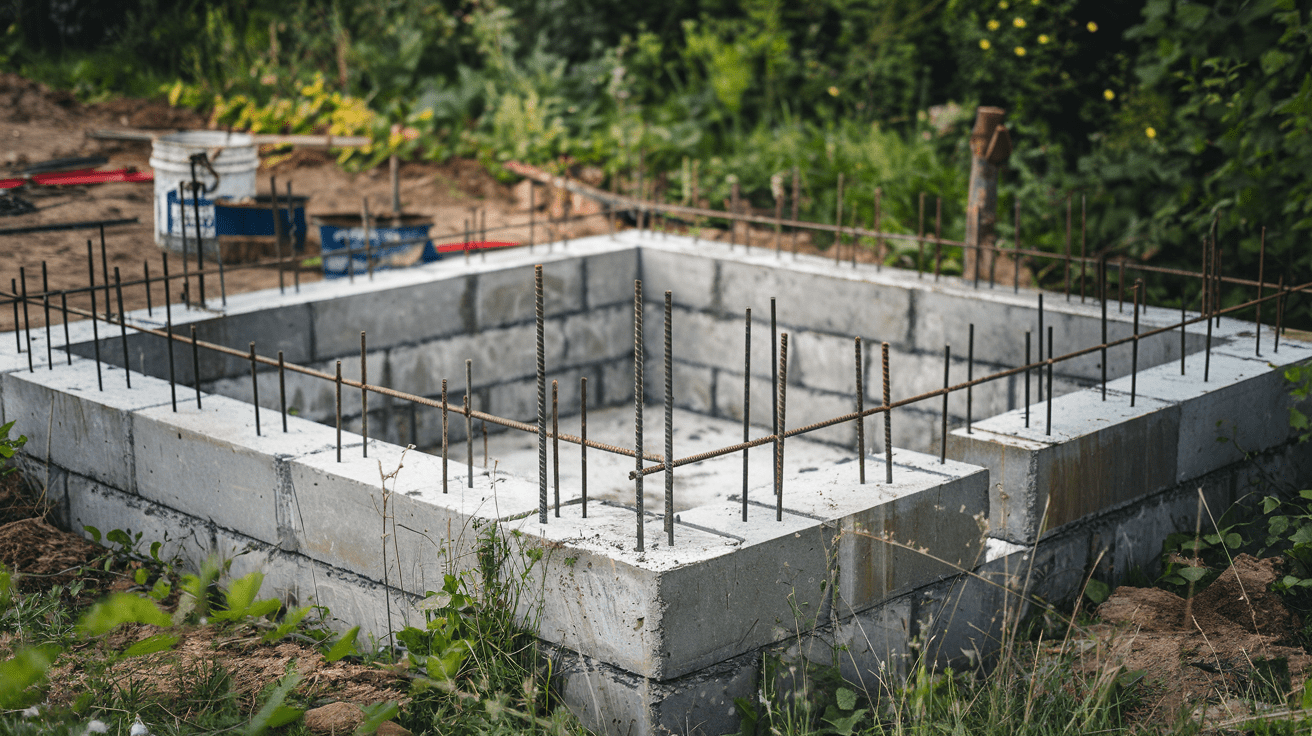

Concrete block foundations, constructed from hollow or filled concrete masonry units, provide critical load-bearing support for residential structures across the Bay Area. When reinforced with vertical steel rebar and high-strength mortar, these modular systems distribute structural loads while offering design versatility across sloped coastal terrains and urban infill properties.

We regularly evaluate concrete masonry unit (CMU) foundations throughout San Francisco, Alameda, and Santa Clara counties. Standard CMU walls consist of individual eight-inch by eight-inch by sixteen-inch hollow blocks stacked in running bond patterns. Vertical cores are positioned over poured concrete footings to transfer gravity loads into surrounding subgrade soils.

Core Structural Components and Load Distribution

A concrete block foundation system achieves structural stability through three interdependent elements: continuous reinforced concrete footings, unit-bonded masonry blocks, and interior grout cores. Together, these components absorb compressive forces from building weight while resisting lateral ground forces generated by expansive clay soils and local seismic activity.

The concrete footing serves as the fundamental base, anchored below the frost and surface weathering line. Tensile strength inside hollow CMU walls is established by embedding grade sixty steel rebar into specific hollow cores. We then fill these reinforced cavities with liquid cementitious grout to form rigid internal structural columns.

Bay Area Environmental Factors Impacting CMU Foundations

Bay Area geology poses distinct environmental challenges to concrete block foundations due to widespread expansive Smectite clay soils and high microclimate soil moisture variations. During wet winter months, saturated clay soils expand significantly, exerting extreme lateral hydrostatic pressure against subterranean block walls and initiating mortar joint shear failures.

In summer, those same clay soils dry out and contract, removing crucial perimeter lateral support. This cyclic expansion and contraction causes localized foundation settlement and structural wall tipping. According to guidelines published by the Federal Emergency Management Agency, unreinforced masonry walls are particularly susceptible to cracking when subjected to changing lateral ground movement.

Seismic Performance and Liquefaction Vulnerabilities

Seismic ground shaking along the Hayward and San Andreas fault systems subjects rigid concrete block foundations to severe shear stresses and horizontal acceleration forces. In low-lying bay margin areas containing water-saturated fine sands, earthquake shaking triggers soil liquefaction, causing foundation blocks to sink unevenly or crack along step patterns.

Data mapped by the United States Geological Survey indicates that roughly twenty-five percent of the San Francisco Bay region sits within moderate to high liquefaction hazard zones. During intense ground movement, hollow or poorly grouted block cores cannot resist lateral shear forces. We frequently observe unreinforced CMU walls separating at mortar joints during significant seismic events.

Field Case Studies: Complex Bay Area CMU Repairs and Solutions

Resolving real-world concrete block foundation distress in the Bay Area requires site-specific geotechnical engineering and tailored mechanical stabilization. Over decades of field operations, our engineering team has developed specialized repair protocols that address severe soil expansion, structural rotation, and significant differential settlement without necessitating full structure demolition.

Case Study 1: Lateral Wall Bowing in Oakland Hills Expansive Clay

In an Oakland Hills residence built on steep expansive clay, saturated winter soils created over two inches of inward lateral wall deflection along a twenty-foot CMU basement wall. We permanently stabilized the home by excavating exterior soil, installing high-tensile carbon fiber grid straps, and constructing a heavy-duty subgrade drainage system.

Our diagnostic inspection revealed severe horizontal shear cracking along the third mortar joint course from the floor slab. We relieved hydrostatic pressure by excavating ten feet down along the exterior perimeter foundation wall. We then bonded industrial carbon fiber straps vertically across the interior wall face at four-foot intervals using structural epoxy resin. To prevent future moisture accumulation, we added dual-wall perforated drain pipes embedded in clean drain rock behind an exterior waterproof membrane.

Case Study 2: Foundation Settlement near San Jose Flood Plain

A single-story residential property near San Jose experienced three inches of differential settlement across its southern CMU foundation wall due to unstable alluvial soil conditions. We rectified this structural failure by driving heavy-duty steel helical piers into deep load-bearing bedrock and hydraulic lifting the wall back to level grade.

The original foundation lacked deep piers, causing it to sink as water table fluctuations softened the surface soil layers. We installed custom foundation brackets beneath the existing concrete footing at six-foot spacing intervals along the affected perimeter. Hydraulic piering equipment drove galvanized steel shafts through forty feet of soft clay until reaching dense gravel strata. We then carefully jacked the foundation back to its original elevation and underpinned the masonry units with non-shrink structural grout.

Structural Comparison and Remediation Trade-Off Analysis

Selecting the appropriate foundation remediation strategy depends on specific site constraints, soil density, structural loads, and budgetary parameters. While carbon fiber straps excel at counteracting lateral hydrostatic wall deflection, steel helical piers provide superior vertical load support when foundations experience deep subgrade settlement or severe seismic liquefaction.

We evaluate each home based on site soil borings and precise structural deflection measurements. The following analytical comparison details key performance criteria, relative costs in US Dollars, and optimal deployment conditions for common foundation systems and stabilization methods.

Comprehensive Step-by-Step CMU Foundation Repair Process

Restoring a compromised concrete block foundation requires a meticulous, sequence-driven engineering protocol to protect structural integrity throughout execution. Our field-proven repair process systematically moves from initial forensic laser evaluation through soil relief, structural stabilization, moisture control installation, and final geotechnical verification to guarantee permanent foundation health.

1. Structural Assessment and Elevation Mapping: We perform comprehensive elevation surveys using electronic water levels and structural laser scanners to pinpoint vertical settlement and wall rotation angles.
2. Geotechnical Soil and Moisture Analysis: Our team collects soil core samples and evaluates perimeter ground drainage to determine hydrostatic pressure factors and soil expansion indexes.
3. Excavation and Subsurface Access: We carefully excavate exterior soils along damaged foundation walls using micro-excavators to relieve soil pressure and expose subsurface masonry blocks.
4. Structural Stabilization and Lifting: We install carbon fiber grid systems for inward bowing or drive steel helical piers to engineered torque limits to lift and stabilize settled footings.
5. Waterproofing and Drainage Remediation: We apply elastomeric waterproof coatings, install dimpled air-gap drainage boards, and lay rigid French drain piping wrapped in filter fabric.
6. Backfilling and Final Structural Inspection: We backfill the perimeter using crushed drain rock and compacted native soil, followed by a final engineering sign-off verifying load capacity.

Frequently Asked Questions

What are the signs that a concrete block foundation requires structural repair?

Visible indicators include horizontal cracks along mortar joints, diagonal stair-step cracks, inward bowing of block walls, and sticking exterior doors. When subgrade soils push against unreinforced CMU walls, structural masonry bonds fracture under tension. Homeowners noticing cracks wider than one-eighth of an inch should schedule a professional engineering inspection immediately.

Can a concrete block foundation withstand San Francisco Bay Area earthquakes?

Concrete block foundations can withstand seismic forces provided they contain internal vertical steel reinforcement, solid grout cores, and adequate anchor bolts tied to wood cripple walls. Unreinforced CMU foundations built prior to modern building codes often lack internal steel and require retrofitting with steel ties, carbon fiber mesh, or concrete encasement to prevent structural collapse during major earthquakes.

How do engineers fix horizontal cracking in CMU foundation walls?

Engineers stabilize horizontally cracked CMU walls by installing high-tensile carbon fiber reinforcement straps or heavy-duty steel I-beam braces against interior wall faces. These mechanical stabilization systems lock the concrete blocks into place and redistribute lateral hydrostatic soil loads across the entire wall face. In severe cases, exterior soil excavation is performed simultaneously to relieve active pressure.

What is the average lifespan of a concrete block foundation in northern California?

A properly waterproofed and structurally reinforced concrete block foundation can last over one hundred years in northern California. However, untreated moisture intrusion, unchecked expansive clay soil movement, or severe seismic activity can degrade mortar joints within thirty to fifty years if maintenance and drainage controls are neglected.

How much does concrete block foundation repair cost in the Bay Area?

Minor mortar tuckpointing and localized crack injection typically costs between 1,500 and 4,000 US Dollars, while minor carbon fiber wall stabilization ranges from 5,000 to 12,000 US Dollars. Comprehensive underpinning involving deep helical piers or total perimeter drainage installation generally costs between 15,000 and 45,000 US Dollars depending on structural access and site severity.

Sources

• Federal Emergency Management Agency (FEMA): Seismic Rehabilitation and Retrofitting Guidelines for Masonry Buildings. https://www.fema.gov
• United States Geological Survey (USGS): San Francisco Bay Area Liquefaction Hazard Maps and Ground Shaking Assessments. https://www.usgs.gov
